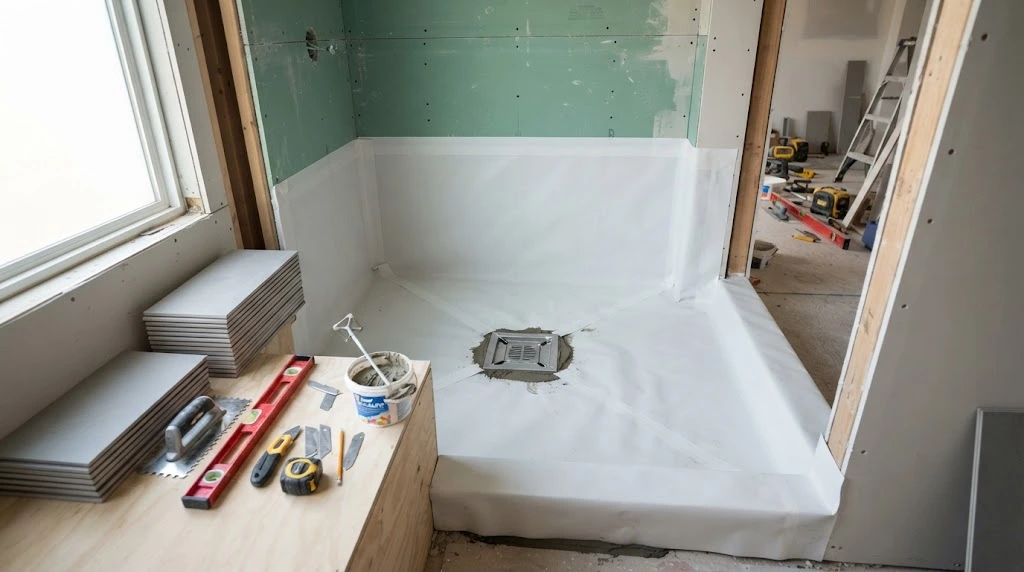

A shower pan underlayment is the waterproof barrier — usually a PVC or CPE sheet — installed between your subfloor and the mortar bed. Its job is simple but critical: stop water from ever reaching the wood framing under your tile shower.
Most DIYers spend $150 to $400 on materials for a standard 4×5 foot shower. Hiring a pro for the full liner and pan installation typically costs $900 to $2,300 in 2026, depending on shower size, drain type, and your local labor rates.
This guide walks you through what the underlayment actually does, how to choose the right liner, and the step-by-step process — including the one test that can save you thousands in hidden water damage.
Why You Need a Shower Pan Underlayment
Tile alone doesn’t keep water out. Grout lines let moisture through, and thinset (the cement-based adhesive that holds tile in place) doesn’t block water either. The underlayment is the real waterproofing layer.
In a traditional mortar bed shower, the liner sits between two layers of mortar:
- A pre-slope layer goes down first, angled at about 1/4 inch per foot toward the drain
- The liner drapes over that slope
- A second mortar bed goes on top, forming the surface your tile sits on
Here’s why that matters: water that slips past your tile and grout doesn’t just vanish. It travels down to the liner, follows the pre-slope, and exits through small weep holes in the drain body. Get this step wrong, and you’re looking at rot, mold, or a stained ceiling in the room below.
Choosing Your Liner: PVC vs. CPE vs. Preformed Pan
PVC Sheet Liner
This is the go-to choice for most DIY shower builds. PVC liner comes in 30 mil and 40 mil thicknesses — the 40 mil version handles foot traffic and mortar work better during installation. You’ll find it sold as pre-cut kits (a 5×6 foot sheet with two corner dams is common) or in bulk rolls up to 100 feet for larger jobs.
CPE Liner
Chlorinated polyethylene, or CPE, is a different material that performs better under a radiant floor heating system. It handles heat cycling more reliably than standard PVC over time. The catch: CPE needs its own bonding adhesive rather than standard PVC seam adhesive, and it costs a bit more per square foot.
Preformed Pans
Fiberglass, acrylic, or composite bases you simply set into place instead of building a liner and mortar bed by hand. They cost less in labor but limit your size and shape options. If you want a custom footprint, a curbless entry, or a linear drain along one wall, a PVC liner over a mortar bed is still the standard.
Tools and Materials Checklist
Gather everything before you start — you don’t want to be running to the hardware store with wet mortar setting up mid-project.
- PVC shower pan liner kit (sized to your shower, plus corner dams)
- Bonding adhesive rated for PVC seams (use a CPE-compatible adhesive if you’re going that route)
- A clamping ring shower drain
- Dry-pack mortar for the pre-slope and top bed, or a pre-sloped foam kit
- Staple gun or hammer and roofing nails
- Utility knife, tape measure, marker, and a 4-foot level
- Silicone caulk for sealing penetrations
Skip felt paper entirely. The petroleum in felt paper reacts with PVC liner and can make it brittle over time. Stick to the mortar and adhesive combination your liner manufacturer recommends.
Step-by-Step: Installing a Shower Pan Liner
This process covers a standard alcove shower with a center drain. Linear drains and curbless designs follow similar principles but need product-specific instructions for the drain hardware.
1. Build the Pre-Slope and Set the Drain Base
Pour dry-pack mortar onto the subfloor, sloping it 1/4 inch per foot toward the drain base. Don’t cover the drain flange — mortar should stop right at its edge. Let it cure for 24 to 48 hours before moving forward.
Not confident freehanding a mortar slope? A pre-sloped foam kit trims to size and installs faster, with a built-in center ring for the drain.
2. Cut and Position the Liner
Measure your shower, then add extra for the walls — the liner needs to run 5 to 8 inches up the studs on every side — plus the curb. Lay the liner flat, mark your cuts using the grid printed on the back, and cut with a utility knife.
Center the liner over the pre-slope with the factory folds facing up into the corners. Smooth it down without stretching it tight; a little give keeps it from tearing if the framing shifts slightly over time.
3. Seal the Corners and Curb
Fold the liner into each wall corner and staple it to the framing — but only above the finished mortar bed height, so no staple hole sits below water level. Apply seam adhesive before stapling to bond the overlapping PVC together.
Cover the curb with liner material cut to match its width and height, then set the corner dams where the curb meets the wall framing. These preformed pieces seal a spot that’s notoriously hard to waterproof with flat sheet liner alone.
4. Connect the Drain and Clear the Weep Holes
Cut a hole in the liner directly over the drain opening, then seat the liner into the drain’s lower flange. Install the clamping ring on top to lock everything in place and create a watertight seal.
Double-check the weep holes around the drain’s edge stay clear of mortar or debris. These small openings let water that reaches the liner drain away instead of pooling on top.
5. Run the 24-Hour Flood Test
Plug the drain with a test plug, then fill the shower base with about 2 inches of water. Leave it for 24 hours and check the ceiling below (if there is one) and the subfloor edges for any sign of leaking.
This is the single most important step in the entire process. A flood test catches a bad seam or a puncture before it gets buried under a mortar bed and thousands of dollars in tile.
6. Pour the Top Mortar Bed
Once the liner passes the flood test, mix and pour your final mortar bed at the same 1/4 inch per foot slope. Screed it smooth and let it cure fully — typically 24 to 72 hours depending on temperature and humidity — before starting tile work.
Shower Pan Underlayment Cost Breakdown (2026)
| Item or Service | Typical Cost Range | What Affects the Price |
|---|---|---|
| PVC liner kit (5×6 ft, with corner dams) | $25–$60 | Thickness (30 mil vs 40 mil), brand, kit size |
| CPE liner (for radiant floor showers) | $40–$90 | Square footage, radiant heat compatibility |
| Bonding adhesive and mortar materials | $40–$120 | Shower size, mortar bag count, adhesive brand |
| Clamping ring shower drain | $25–$90 | Drain style, center vs. linear, brand |
| DIY total (materials only) | $150–$400 | Shower footprint, drain type, liner grade |
| Full pro installation | $900–$2,300 | Labor rates, shower size, subfloor condition |
Labor makes up 40 to 60 percent of most shower projects, and hourly rates for tile setters and plumbers typically range from $45 to $150 depending on region. Custom sizes, linear drains, and subfloor repairs push costs toward the higher end. Treat these figures as a starting point for budgeting rather than a fixed quote.
Common Mistakes That Cause Liner Leaks
Stapling too low. Every staple hole below the finished mortar bed height is a potential leak point. Fasteners need to sit above where water will actually reach.
Skipping the flood test. This is the costliest shortcut. A pinhole leak or bad corner seam that goes unnoticed gets buried under mortar and tile, then shows up as a ceiling stain months later.
Using felt paper. Petroleum content breaks down PVC over time, causing cracks that a proper mortar or adhesive setup avoids entirely.
When to Call a Plumber Instead of DIYing It
Bring in a licensed plumber if your shower needs a new drain line, you’re relocating the drain, or you find soft or rotted subfloor once the old base comes up. Moving plumbing lines usually requires a permit and inspection, so check with your local building department first.
A plumber or tile contractor is also worth hiring if you’ve never worked with mortar. Getting an even 1/4 inch per foot slope by hand takes practice — a lopsided pre-slope leads to standing water that never fully drains.
Shower Pan Liner vs. Ready-to-Tile Foam Pans
Ready-to-tile foam shower pans skip the mortar bed entirely. They arrive pre-sloped and waterproofed from the factory, so you tile straight onto the foam surface.
They cost more upfront — often $200 to $500 for the pan alone — but they cut installation time and remove the risk of an uneven hand-poured slope. A traditional PVC liner and mortar bed still wins for fully custom sizes, curbless designs, or footprints that don’t match a standard foam pan.
Frequently Asked Questions
How long does a PVC shower pan liner last?
A properly installed 40 mil PVC liner typically lasts 20 to 30 years or longer, since it’s protected under the mortar bed and tile and never faces direct sunlight or foot traffic.
Can I install a new liner over an old one?
No. Remove the old liner and mortar bed completely. Layering a new liner over damaged material traps existing water and mold underneath the new installation.
What size shower pan liner do I need?
Measure your shower floor, then add 8 to 12 inches on each side for wall run-up and curb coverage. Most standard alcove showers fit a 5×6 foot liner kit; larger or curbless designs need a bulk roll.
Do I need weep holes with a linear drain?
Yes. Linear drains still need a weep protection system built into the drain body so water reaching the liner has a path out.
Is a PVC liner or a foam pan better for a first DIY project?
A foam pan is more forgiving since the slope comes pre-built. A PVC liner costs less in materials but demands more skill to get the mortar slope and corner seams right.
The Bottom Line
A watertight shower pan comes down to three things: a proper 1/4 inch per foot slope, sealed corners and curb, and a 24-hour flood test before you tile. Skip any of those steps and you risk a leak that won’t surface until real damage has already been done.
Budget $150 to $400 for materials if you’re doing the liner yourself, or $900 to $2,300 for a full professional installation. Either way, the flood test isn’t optional — it’s the one step that confirms your waterproofing actually works before it’s too late to fix cheaply.
